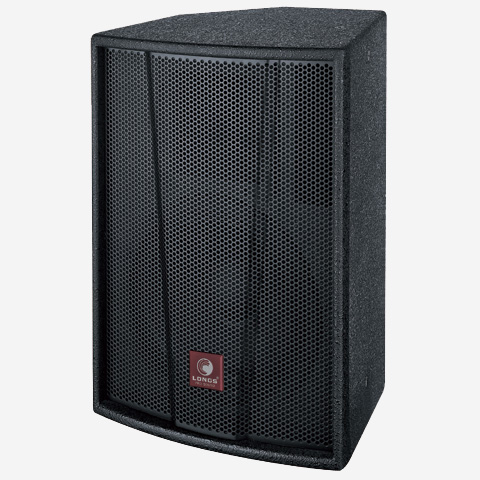

 | | | | F-15+ loudspeaker designed with a 15 inch low-frequency speaker unit (aluminum frame, 7.48 inch diameter magnet, 3 inch diameter voice coil), and a 1.7 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 680 watts of a single amplifier in the 8Ω, two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
F-15+
two-way, full range system
45Hz-18kHz±3dB
450W(RMS) 800W(PEAK)
105dB(1W@1m)
LF 128dB/HF 128dB
LF 15" woofer×1 HF 44mm titanium diaphragm×1
8 ohm
90°H×60°V
Black paint
2×NL4 Speakon
37Kg
480×430×700mm | | | | Prev：No infos | | Next：F-12+ | |
|
