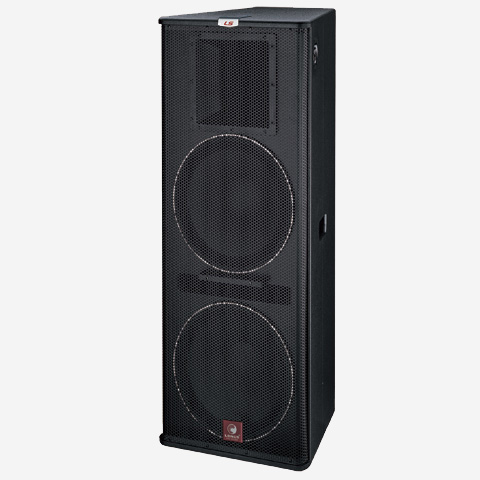

 | | | | L-125B loudspeaker designed with dual 15 inch low-frequency speaker units (aluminum frame, 5.5 inch diameter magnet, and 1.97 inch diameter voice coil), and a 1.73 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 800 watts of a single amplifier in 8Ω two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
L-125B
two-way, full range system
50Hz-18kHz±3dB
800W(RMS) 1200W(PEAK)
103dB(1W@1m)
LF 122dB/HF 122dB
LF 15" woofer×2 HF 44mm titanium diaphragm×1
4 ohm
90°H×60°V
Black paint
2×NL4 Speakon
55Kg
480×480×1200mm | | | | Prev：No infos | | Next：L-115B | |
|
