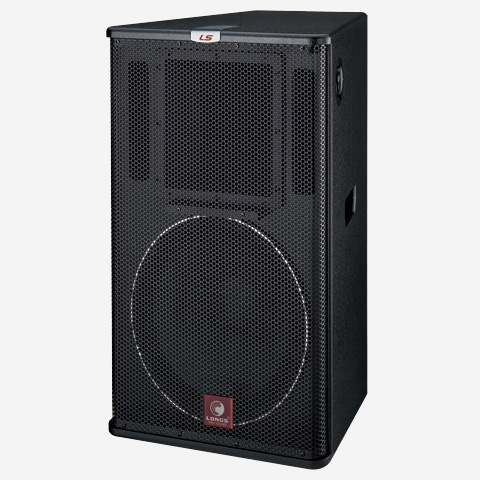

 | | | | L-115B loudspeaker designed with a 15 inch low-frequency speaker unit (aluminum frame, 5.5 inch diameter magnet, and 1.97 inch diameter voice coil), and a 1.73 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 500 watts of a single amplifier in 8Ω two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
L-115B
two-way, full range system
50Hz-18kHz±3dB
400W(RMS) 800W(PEAK)
103dB(1W@1m)
LF 122dB/HF 122dB
LF 15" woofer×1 HF 44mm titanium diaphragm×1
8 ohm
90°H×60°V
Black paint
2×NL4 Speakon
41.5Kg
480×480×800mm | | | | Prev：L-125B | | Next：L-112B | |
|
