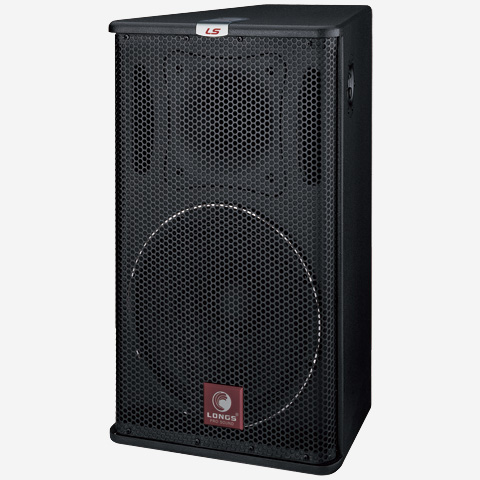

 | | | | L-112B loudspeaker designed with a 12 inch low-frequency speaker unit (aluminum frame, 5.5 inch diameter magnet, and 1.97 inch diameter voice coil), and a 1.34 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 200 watts of a single amplifier in 8Ω two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
L-112B
two-way, full range system
55Hz-18kHz±3dB
250W(RMS) 600W(PEAK)
100dB(1W@1m)
LF 120dB/HF 122dB
LF 12" woofer×1 HF 34mm titanium diaphragm×1
4 ohm
80°H×60°V
Black paint
2×NL4 Speakon
32.5Kg
400×400×600mm | | | | Prev：L-115B | | Next：No infos | |
|
