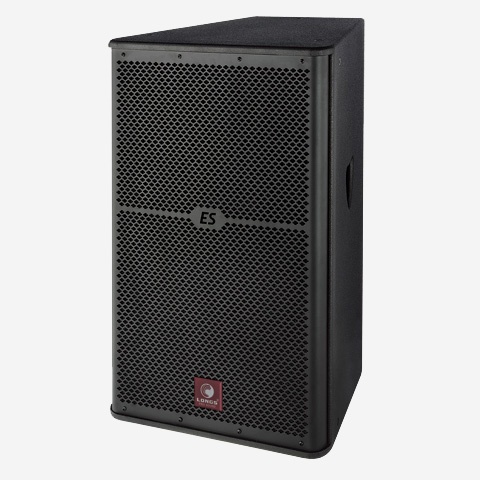

 | | | | ES-815 loudspeaker designed with a 15 inch low-frequency speaker unit (aluminum frame, 6.7 inch diameter magnet, and 2.95 inch diameter voice coil), a 6.5 inch mid-frequency speaker, and a 1.73 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 500 watts of a single amplifier in 8Ω, two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
ES-815
three-way, full range system
50Hz-18kHz±3dB
500W(RMS) 800W(PEAK)
102dB(1W@1m)
LF 126dB/MF 126dB/HF 128dB
LF 15" woofer×1 MF 6.5" mid-frequency unit×1 HF 44mm titanium diaphragm×1
8 ohm
80°H×60°V
Black paint
2×NL4 Speakon
48Kg
480×480×800mm | | | | Prev：ES-825 | | Next：ES-812 | |
|
