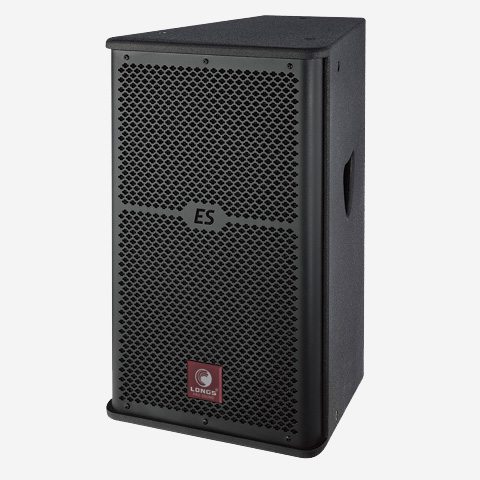

| | | ES-812 loudspeaker designed with a 12 inch low-frequency speaker unit (aluminum frame, 6.7 inch diameter magnet, and 2.56 inch diameter voice coil), a 4 inch mid-frequency speaker, and a 1.34 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 350 watts of a single amplifier in 8Ω, two-way passive designed requirement. | |
| | |
| | | | |
Model Type Frequency Response Power Handling Sensitivity Max. SPL Unit Impedance Dispersion pattern Finish Connector Net Weight Dimension(W×D×H)
|
ES-812 three-way, full range system 55Hz-18kHz±3dB 300W(RMS) 600W(PEAK) 101dB(1W@1m) LF 120dB/MF 120dB/HF 121dB LF 12" woofer×1 MF 5" mid-frequency unit×1 HF 34mm titanium diaphragm×1 8 ohm 80°H×60°V Black paint 2×NL4 Speakon 35Kg 400×400×600mm | | | Prev:ES-815 | Next:No infos | |
|
