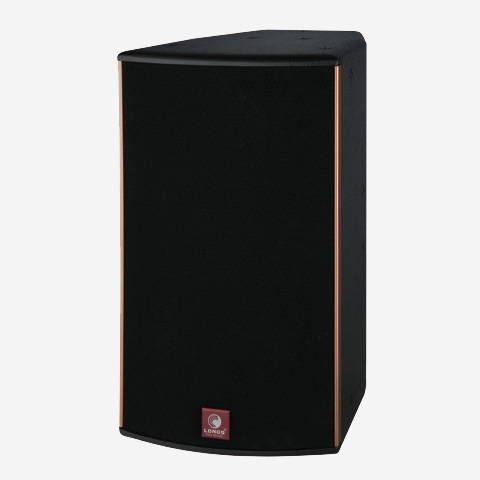

 | | | | LS-12 loudspeaker designed with a 12 inch low-frequency speaker unit (aluminum frame, 6.7 inch diameter magnet, and 2.56 inch diameter voice coil), a 4 inch mid-frequency speaker, and a 1.34 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 350 watts of a single amplifier in 8Ω, two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
LS-12
three-way, full range system
55Hz-18kHz±3dB
300W(RMS) 600W(PEAK)
101dB(1W@1m)
LF 120dB/ MF 120dB/HF 121dB
LF 12" woofer×1 MF 5" mid-frequency unit×1 HF 34mm titanium diaphragm×1
8 ohm
80°H×60°V
Black paint
2×NL4 Speakon
35Kg
400×400×600mm | | | | Prev：LS-15 | | Next：LS-10 | |
|
