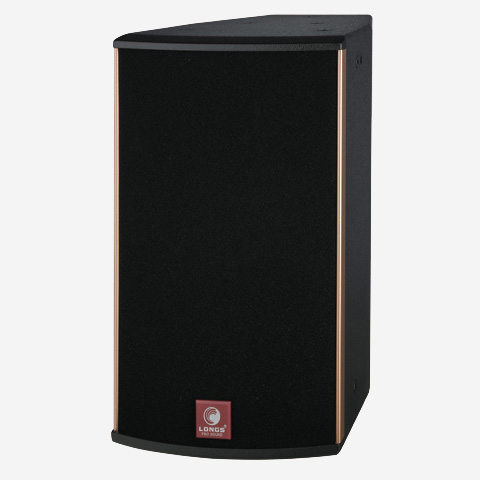

 | | | | LS-10 is full range conference speakers, it servers particularly for some kinds of pubs, ballrooms, meeting rooms and multifunction rooms and outdoor. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
LS-10
two-way, full range system
60Hz-18kHz±3dB
120W(RMS) 450W(PEAK)
105dB(1W@1m)
LF 126dB/HF 126dB
LF 10" woofer×1 HF 25mm titanium diaphragm×1
8 ohm
90°H×60°V
Black paint
2×NL4 Speakon
12Kg
300×330×500mm | | | | Prev：LS-12 | | Next：LS-8 | |
|
